Home use e-Boards

Smart Board without indices

A more affordable alternative alongside the wooden DGT boards, designed to make live chess broadcasting more accessible

Back to Home use e-Boards

Information

Specifications

The DGT Smart Board is an electronic chess board with many different uses.

It was developed as a more affordable alternative alongside the wooden DGT boards and to make live chess broadcasting more accessible.

It is made of high quality plastic and provides the same great functionality and user experience as the wooden e-Boards.

Product features:

  • Online play
  • Recording games
  • Live internet broadcasting
  • Tournament set-up
  • Computer play
  • Fritz 19 software activation key,
  • 1 year free Premium Membership on PlayChess.com
Dimensions
Board size/thickness: 520 x 520 mm (20.5 x 20.8 inch)
Square size: 55 x 55 mm (2.2 x 2.2 inch)
Net weight: 2.0 Kg (70.55 oz) Smart Board only
Gross weight: 2.6 Kg (91.71 oz) Smart Board, documentation and packing
Technical specifications
Housing
Black ABS plastic chassis with a high quality printed chess board surface
Matching chess pieces
All electronic DGT pieces sets
Matching clocks
DGT3000 connectable through the included clock cable
Compatible with
DGT Pi chess computer
Software
Fritz 19 software activation key, 1 year free Premium Membership on PlayChess.com
General
Power
Supplied via the 3 meter USB (C) cable (included)
Warranty
2 years

Fast & accurate

Just like the wooden electronic DGT boards, the Smart Board knows everything that is happening on the board at all times. This gives it great speed and accuracy to record and broadcast chess games live as they happen.

Smart design

The wood print finish on top of the board is very appealing and looks just like a real Walnut wooden board. The board is lightweight, thin and ergonomic making it easy to store and transport.

Smart Boards are available with or without indices and are compatible with all electronic DGT chess pieces sets. An affordable plastic set was produced but the Smart Board also looks great with the wooden Timeless set!

Show yourself off online

When playing chess on a Smart Board it records the games, it will log and record around 500 moves that can be retrieved from the board in PGN format and used on other devices such as a PC, tablet or mobile phone. Use a chess program for analysing the game or to publish the games.

By using a Smart Board to play chess, you can show the game locally on screens or tv’s or broadcast the game live via the internet on your website using DGT Live Chess.

Take a look

Your customers only want the best. So feel free to view the DGT Smart Board without indices from all angles. You will be amazed.

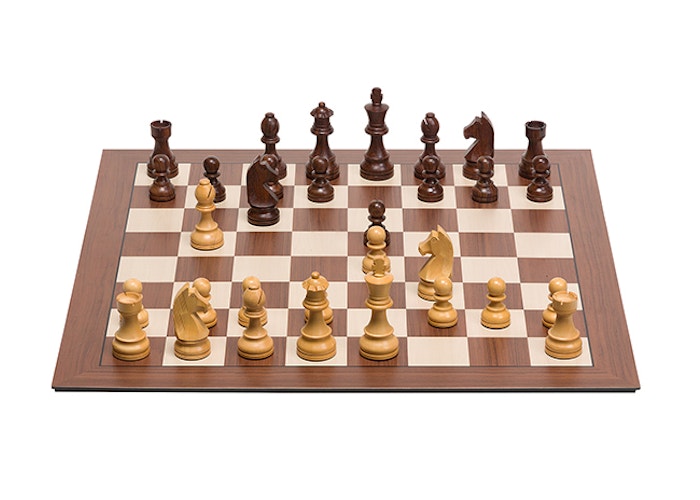

Smart Board without indices

Cable connections for smart board

For tournaments: connection materials for Smart Boards must be ordered separately.

For home use: connect a single Smart Board to the PC or laptop using DGT USB Cable package, supplied with the board when purchased for home use.

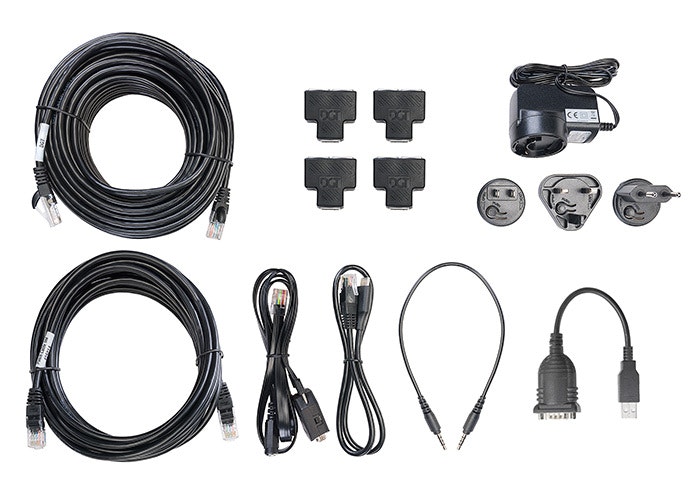

Connection material for the first Tournament Board (Product Code 11011)

This connection set is required to connect the first of every 12 Tournament Boards. Must be ordered separately.

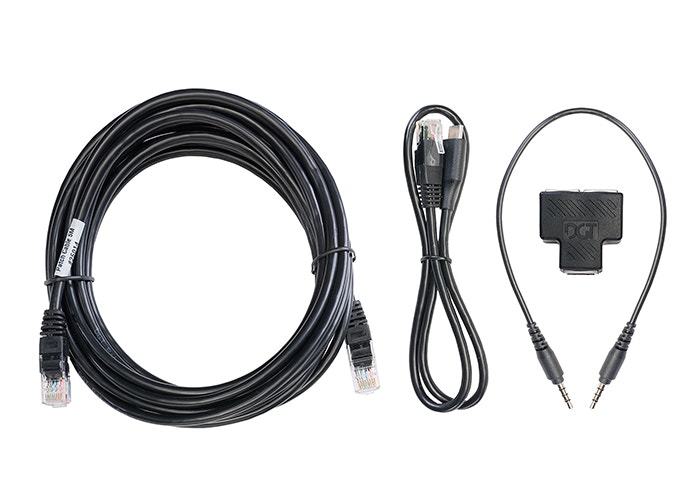

Connection Material for Additional Tournament e-Boards (Product Code 11012)

To connect each of the next 11 Tournament Boards for each board a connection set is required. Must be ordered seperately.

Home use connection

Connect a single Smart Board to the PC or laptop using DGT USB Cable package.
